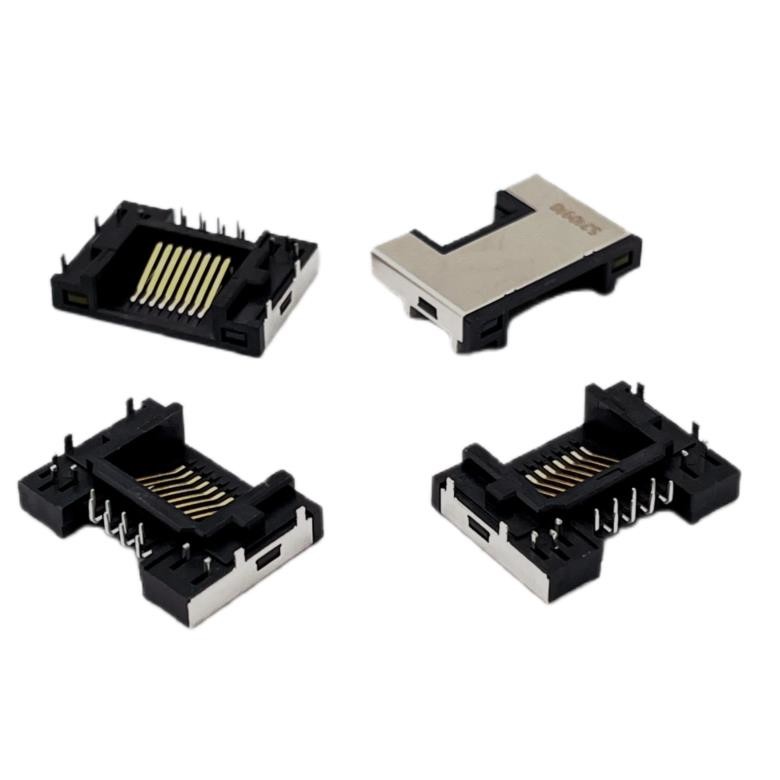

90 Degree Mid Mount PA9T RJ45 Female Connector Socket Modular Jack H4.8mm

Name: 90 Degree Mid Mount PA9T RJ45 Female Connector Socket Modular Jack H48mm
Brand: Jinze
Price: 1 USD

China 90 Degree Mid Mount PA9T RJ45 Female Connector Socket Modular Jack H4.8mm wholesale

Brand Name : Jinze

Model Number : RJ11A-9BA3S-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : PA9T HF UL94V-0

Color : Black

Shell : Stainless Steel T=0.2mm

Contact : Copper Alloy T=0.25mm

Gender : Receptacle (Female)

Application : Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number of Contacts : 8P8C (RJ45,Ethernet)

Number of Ports : 1 Port

Current Rating : 1.5AMP

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 450pcs per Reel

Contact Now

90 Degree Mid Mount RJ45 Female Connector Socket Modular Female Jack H4.8mm

Specifications:

Current Rating	1.5AMP
Contact Resistance	30mΩ Max (Initial)
Voltage Rating	125V
Insulation Resistance	500mΩ Min
Operation Temperature	-20℃ to +85℃
Contact Material	Copper Alloy
Contact Plating	Gold+Tin+Nickel
Insulator Material	PA9T
Durability	5000 Cycles
Mating Force	20N Max With Latch Deperessed
Unmating Force	20N Max With Latch Deperessed

90 Degree Mid Mount PA9T RJ45 Female Connector Socket Modular Jack H4.8mm

2D Drawing

RJ11A-9BA3S-RHA.pdf, if you need the Drawing, pls download it

Our advantage
1. Professional connector manufacturer, a variety of styles to choose from, providing the best EXW price! 100% QC shipping inspection, quality assurance!

2. We can provide free samples for you to test!

3. We support OEM/ODM. If the product is not what you want, please contact us directly, we will make the best solution for you for free!

4. Large-scale production workshop, fast delivery, immediate delivery, guaranteed delivery.

5. One-to-one after-sales service, please feel free to contact us if you have any questions.
